LWR-P2 is a portable detection system used to warn personnel targeted by IR Pulsed Laser Sources.
Functional Description
- High sensitivity IR Sensor with IR band pass filter.
- Sound Warning.
- Low Battery Indicator.
- Sound indication of the laser modulation, allows the user to identify the laser source according to its pulse repetition frequency.
Operational Use
- LWR-P2 is intended for protection of personnel from laser targeting.
- At any alarm of the LWR the user has to run away from its position as quickly as possible.
- Use of smoke grenades increase survivability by breaking the optical lock on of the designator.
Specifications

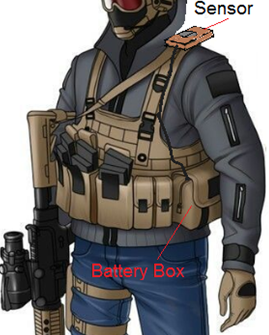

- Dimensions
- Battery Unit 6 x 4 x 13 cm.
- Sensor 6 x 2 x 9 cm
- Weight
- Empty 480 gr
- With batteries 750 gr
- Sensitivity <10W/m2
- Wavelength 750-1750 nm
- Frequency 1-100 Hz
- Power Supply 15V DC replaceable battery. Duration 75 hours.
- Audio Warning 70 db @ 20 cm
